Plug Valve

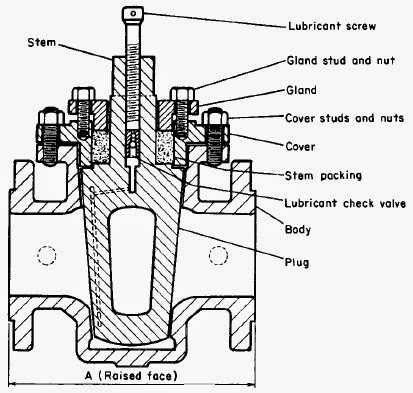

Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open.
Plug valves are simple and often economical.

we at saikripa provide hardchromed plug for special purposes. And even jacketed plug valves are available for special purposes.


* NOTE : Applications:
· API 600/API 602/API 603 For Gate Valve
· BS 1873/BS 1868/BS 5352 for Globae and Check Valve
· BS 5351/BS 4460/BS 5159 API 6D for Ball Valves
· API 598/BS 5146/API 607/ANSI B 16.34 for Inspection & Testing

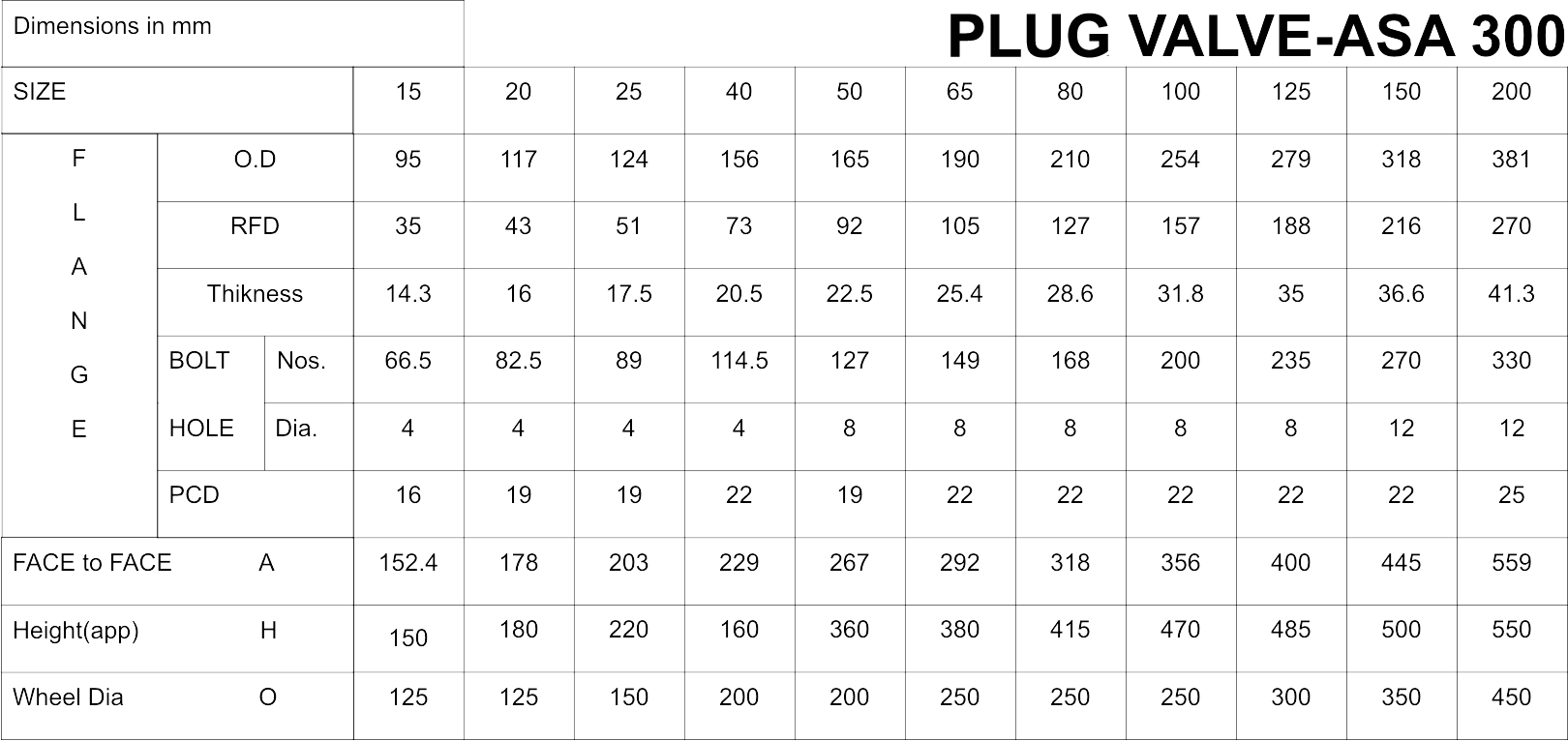

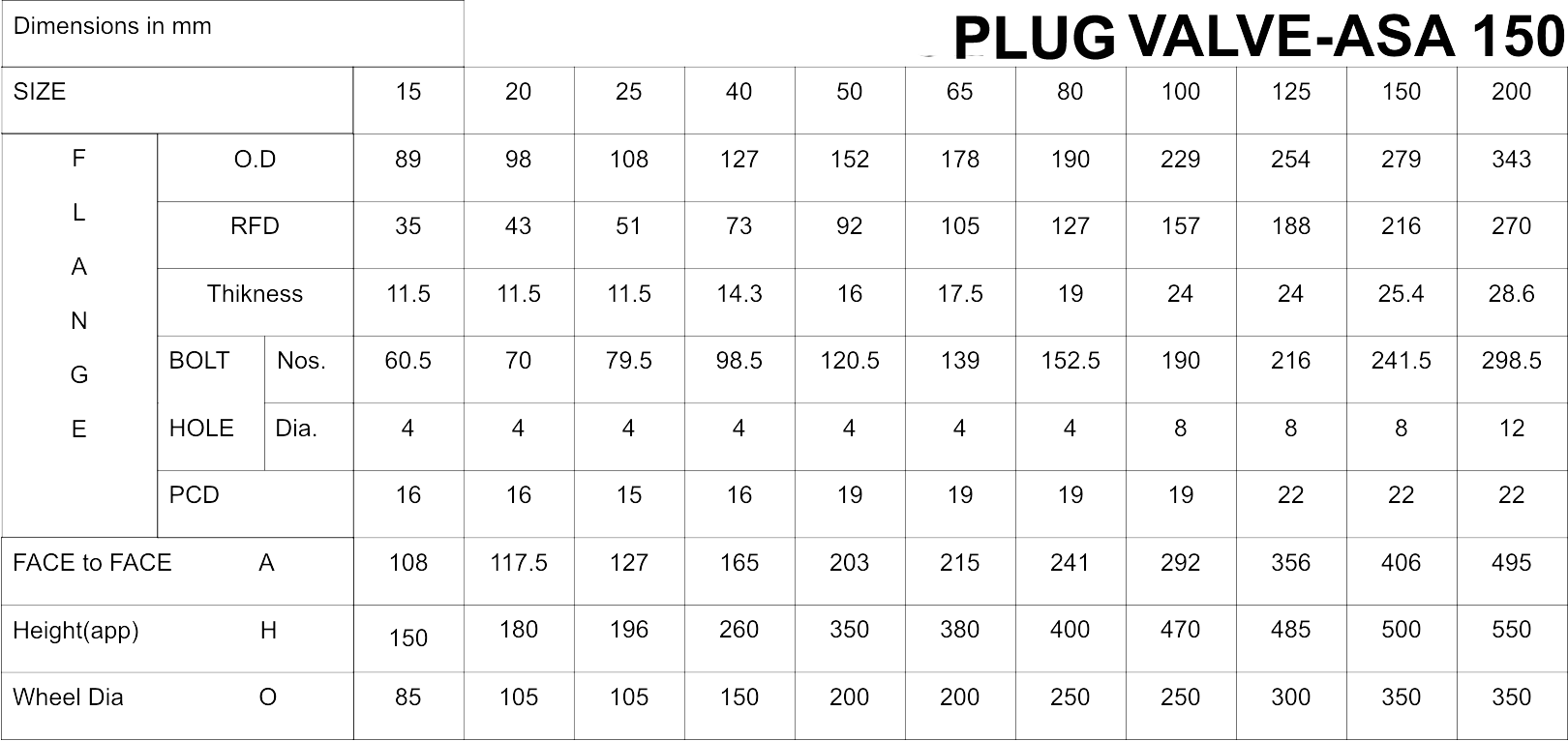

· ANSI B16.10/ANSI B16.5/ANSI B16.34/ANSI B16.25/ANSI B16.11 for Dimensions
Also on Specific Requirement we offer valves as per DIN 3202/DIN 3300/BS Standars
